RTL8201CP-VD-LF原装 以太网芯片
SINGLE-CHIP/SINGLE-PORT 10/100M FAST ETHERNET PHYCEIVER (With Auto Crossover)
RTL8201CP-VD-LF原装 以太网芯片 的技术参数：
制造商 | REALTEK |
RoHS | 是 |
类别 | 以太网芯片 |
通道数 | 1 |
接口类型 | I2C, SMI |
电源电压 | 1.8V, 3.3V |
电源电流 | 120mA (Max) |
支持 | MII和7-wire SNI |

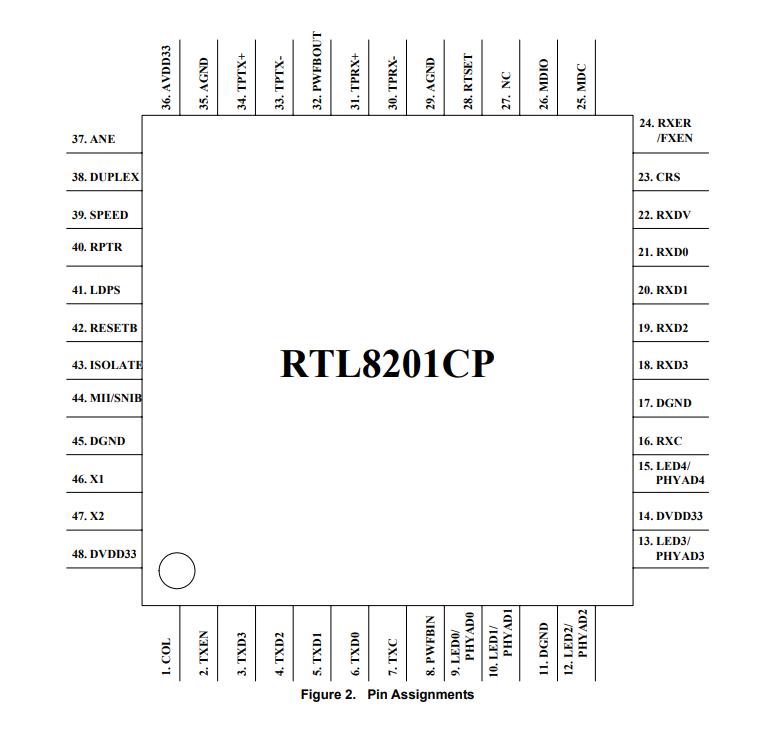

封装 / 箱体 | 48-pin LQFP |
应用功能 | 物理层收发器 |
RTL8201CP-VD-LF原装 以太网芯片 的描述：
The RTL8201CP is a single-chip/single-port PHYceiver with an MII (Media Independent Interface)/SNI (Serial Network Interface). It implements all 10/100M Ethernet Physical-layer functions including the Physical Coding Sublayer (PCS), Physical Medium Attachment (PMA), Twisted Pair Physical Medium Dependent Sublayer (TP-PMD), with an auto crossover detection function, 10Base-Tx Encoder/Decoder, and Twisted-Pair Media Access Unit (TPMAU).
A PECL (Pseudo Emitter Coupled Logic) interface is supported to connect with an external 100Base-FX fiber optical transceiver. The chip utilizes an advanced CMOS process to meet low voltage and low power requirements. With on-chip DSP (Digital Signal Processing) technology, the chip provides excellent performance under all operating conditions.
The RTL8201CP can be used for applications such as those for a Network Interface Adapter, MAU (Media Access Unit), CNR (Communication and Network Riser), ACR (Advanced Communication Riser), an Ethernet hub, and an Ethernet switch. In addition, it can be used in any embedded system with an Ethernet MAC that needs a UTP physical connection or Fiber PECL interface to an external 100Base-FX optical transceiver module.
RTL8201CP-VD-LF是带有MII(介质无关接口)/SNI(串行网络接口)的单芯片/单端口物理层收发器，执行所有的10/100M以太网物理层功能。支持PECL接口与外部100Base-FX光纤收发器连接。
MT29F64G08CBABAWP固带 10K 23+
KLM8G1GETF-B041 10K 23+
KLMBG2JETD-B041 10K 23+
KLMAG1JETD-B041 10K 23+
K4E6E304EC-EGCG 10K 23+
K4B4G1646E-BCNB 10K 23+
K4F6E3S4HM-MGCJ 10K 23+
K4AAG165WA-BCWE 10K 23+
K4B4G0846E-BCNB 10K 23+
H5TC4G83BFR-PBA 95 17+
H26M41204HPR 5 20+
SDTNRGAMA-008G 35 21+
K4UBE3D4AA-MGCL 10K 23+
K4UBE3D4AB-MGCL 10K 23+
K4U6E3S4AA-MGCR 10K 23+
优势出，有需要的欢迎联系
询价
