RTL8189ES-VB-CG原装 无线收发芯片
SINGLE-CHIP IEEE 802.11B/G/N 1T1R WLAN CONTROLLER WITH SDIO INTERFACE
RTL8189ES-VB-CG原装 无线收发芯片 的技术参数：
制造商 | Realtek |

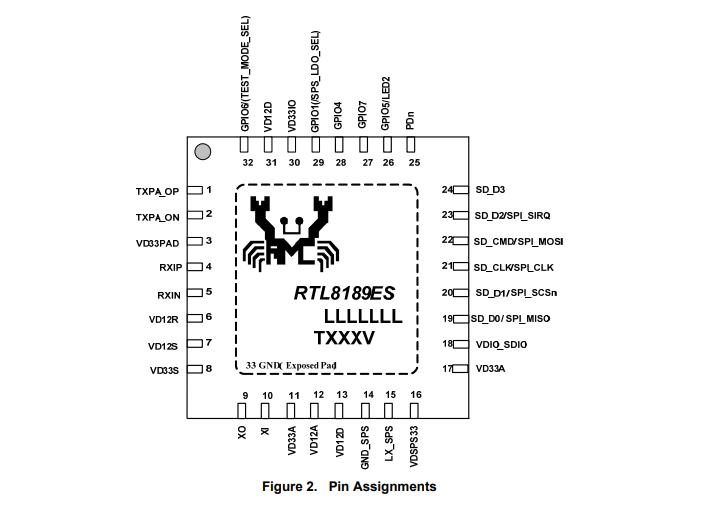

封装 / 箱体 | 32-pin QFN |
类别 | 无线收发芯片 |
支持 | IEEE 802.11b/g/n compatible WLAN |
支持 | IEEE 802.11e QoS Enhancement (WMM) |
支持 | 802.11i (WPA, WPA2). Open, shared key, and pair-wise key authentication services |
存储温度规格 | -55 °C to +125°C |
环境工作温度 | 0°C to 70°C |
应用 | Single-Band 11n (1x1) Solution |
RTL8189ES-VB-CG原装 无线收发芯片 的描述：
The Realtek RTL8189ES-VB-CG is a highly integrated single-chip 802.11n Wireless LAN (WLAN) network SDIO interface (SDIO 1.1/ 2.0/ 3.0 compatible) controller. It is a WLAN MAC, a 1T1R capable WLAN baseband, and WLAN RF in a single chip. The RTL8189ES-VB provides a complete solution for a high-throughput performance integrated wireless LAN device.
The RTL8189ES-VB WLAN baseband implements Orthogonal Frequency Division Multiplexing (OFDM) with 1 transmit and 1 receive path and is compatible with the IEEE 802.11n specification. Features include one spatial stream transmission, short guard interval (GI) of 400ns, spatial spreading, and transmission over 20MHz and 40MHz bandwidth.
For legacy compatibility, Direct Sequence Spread Spectrum (DSSS), Complementary Code Keying (CCK) and OFDM baseband processing are included to support all IEEE 802.11b and 802.11g data rates. Differential phase shift keying modulation schemes, DBPSK and DQPSK with data scrambling capability, are available, and CCK provides support for legacy data rates, with long or short preamble. The high-speed FFT/IFFT paths, combined with BPSK, QPSK, 16QAM, and 64QAM modulation of the individual subcarriers and rate compatible punctured convolutional coding with coding rate of 1/2, 2/3, 3/4, and 5/6, provide higher data rates of 54Mbps and 150Mbps for IEEE 802.11g and 802.11n OFDM respectively.
The RTL8189ES-VB WLAN Controller builds in an enhanced signal detector, an adaptive frequency domain equalizer, and a soft-decision Viterbi decoder to alleviate severe multi-path effects and mutual interference in the reception of multiple streams. Robust interference detection and suppression are provided to protect against Bluetooth, cordless phone, and microwave oven interference.
Efficient IQ-imbalance, DC offset, phase noise, frequency offset, and timing offset compensations are provided for the radio frequency front-end. Selectable digital transmit and receive FIR filters are provided to meet transmit spectrum mask requirements and to reject adjacent channel interference, respectively.
The RTL8189ES-VB WLAN Controller supports fast receiver Automatic Gain Control (AGC) with synchronous and asynchronous control loops among antennas, antenna diversity functions, and adaptive transmit power control function to obtain the better performance in the analog portions of the transceiver.
The RTL8189ES-VB WLAN MAC supports 802.11e for multimedia applications, 802.11i for security, and 802.11n for enhanced MAC protocol efficiency. Using packet aggregation techniques such as A-MPDU with BA and A-MSDU, protocol efficiency is significantly improved. Power saving mechanisms such as Legacy Power Save, and U-APSD, reduce the power wasted during idle time, and compensates for the extra power required to transmit OFDM. The RTL8189ES-VB provides simple legacy and 20MHz/40MHz co-existence mechanisms to ensure backward and network compatibility.
